Industry situation

Up to now, the proportion of building energy consumption in the total social energy consumption in China will reach an astonishing 35%, surpassing the industrial energy consumption at one stroke and becoming the first echelon of energy consumption.According to the Ministry of Housing and Urban-rural Development, building energy consumption accounts for more than 28 percent of China's total energy consumption.

As a smart Internet of things terminal solution provider integrating r&d and intelligent manufacturing in the Yangtze River Delta region, Mantu technology actively creates a set of "intelligent building energy consumption detection system".The system can real-time online monitoring of water, electricity, coal, gas, oil and heat energy consumption data, the maximum realization of building power supply, water supply, gas supply and heating equipment running status, the whole process of real-time monitoring of all, managers can through the phone APP, WeChat public number, PC browser and site screen in real time to check the monitoring data.

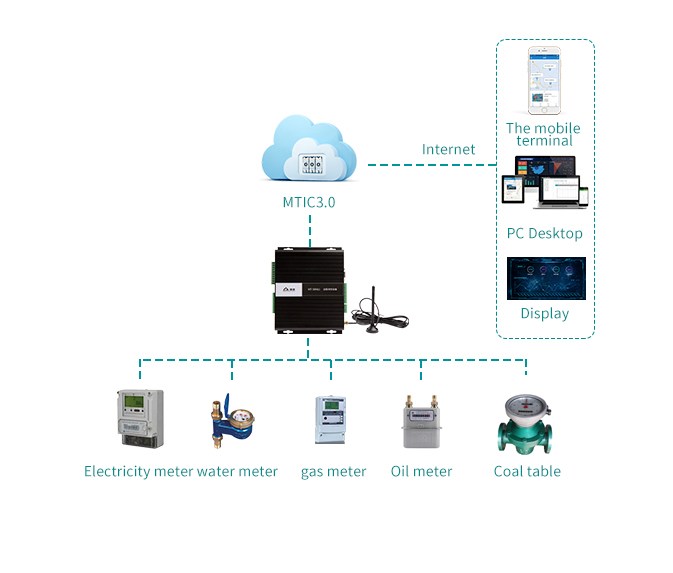

system architecture

system composition

Mantu technology intelligent building energy consumption monitoring system mainly consists of: remote online data acquisition terminal MT-Box, wireless communication network and MTIC 3.0 integrated cloud platform.

※Remote online data acquisition terminal MT-Box: responsible for online acquisition of sensor equipment such as electricity meter, water meter, gas meter, oil meter and coal meter, and data uploading through 4G/ NB-IOT communication interface.

※Wireless communication network: 4G/ NB-iot wireless communication network provided by operators will transmit the data uploaded by MT-Box to the MTIC 3.0 integrated cloud platform.

※MTIC 3.0 comprehensive cloud platform: Responsible for the statistics, analysis and decision making of collected data, so as to facilitate the monitoring center to make timely adjustment of anomalies, timely repair of failures and timely processing of data, and effectively control various data of building energy consumption.

Program features

※High real-time performance: Real-time collection and transmission of data at all monitoring points to THE MTIC 3.0 cloud platform for data analysis and dynamic display through big data Kanban.

※High security, high reliability: the system can effectively prevent and prevent network attacks such as illegal access, illegal access, virus infection and hacker attack, with a high degree of security and confidentiality;The system adopts mature, stable and general technology and equipment, which can guarantee the long-term stable operation of the system, and has strong fault tolerance and system recovery capability.

※Device linkage: Support linkage with terminal peripherals to control the start-stop state of energy meter.

※Risk early warning and intelligent analysis: The real-time collected data are compared with the set threshold. The MTIC 3.0 cloud platform supports AI intelligent analysis and risk early warning.

Introduction to MT-Box Intelligent Terminal

Mt-sr411 is an intelligent terminal with both remote collection and control functions. It provides 1-channel RS 232 interface, 1-channel RS 485 interface, 8-channel switching data acquisition, 8-channel relay output and 4-channel analog data acquisition capabilities.Mt-sr411 can directly access analog signals, level signals and dry contacts output by various sensors, standard transmitters and instruments, etc., making it an excellent choice for remote wireless acquisition and measurement and control.

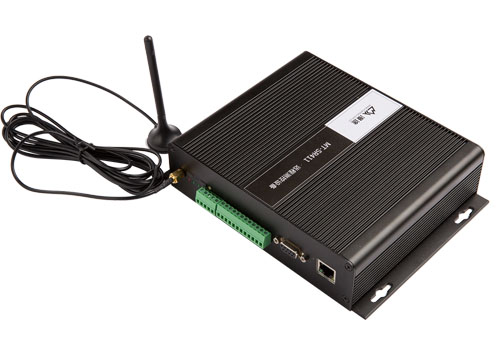

Mt-sr411 intelligent terminal

Mt-sr411 can report the field sensor data to the MTIC 3.0 cloud platform in real time, so as to complete a series of subsequent risk warning, intelligent analysis and other operations.
